Packing list：

Electric bicycle*1
Battery *1
Charger*1
Pedal*2
Multi-function tool*1
Manual *1

XQS-X20 EBIKE

Electric bikes are more popular than ever. They are eco-friendly, convenient to use, and extremely versatile.

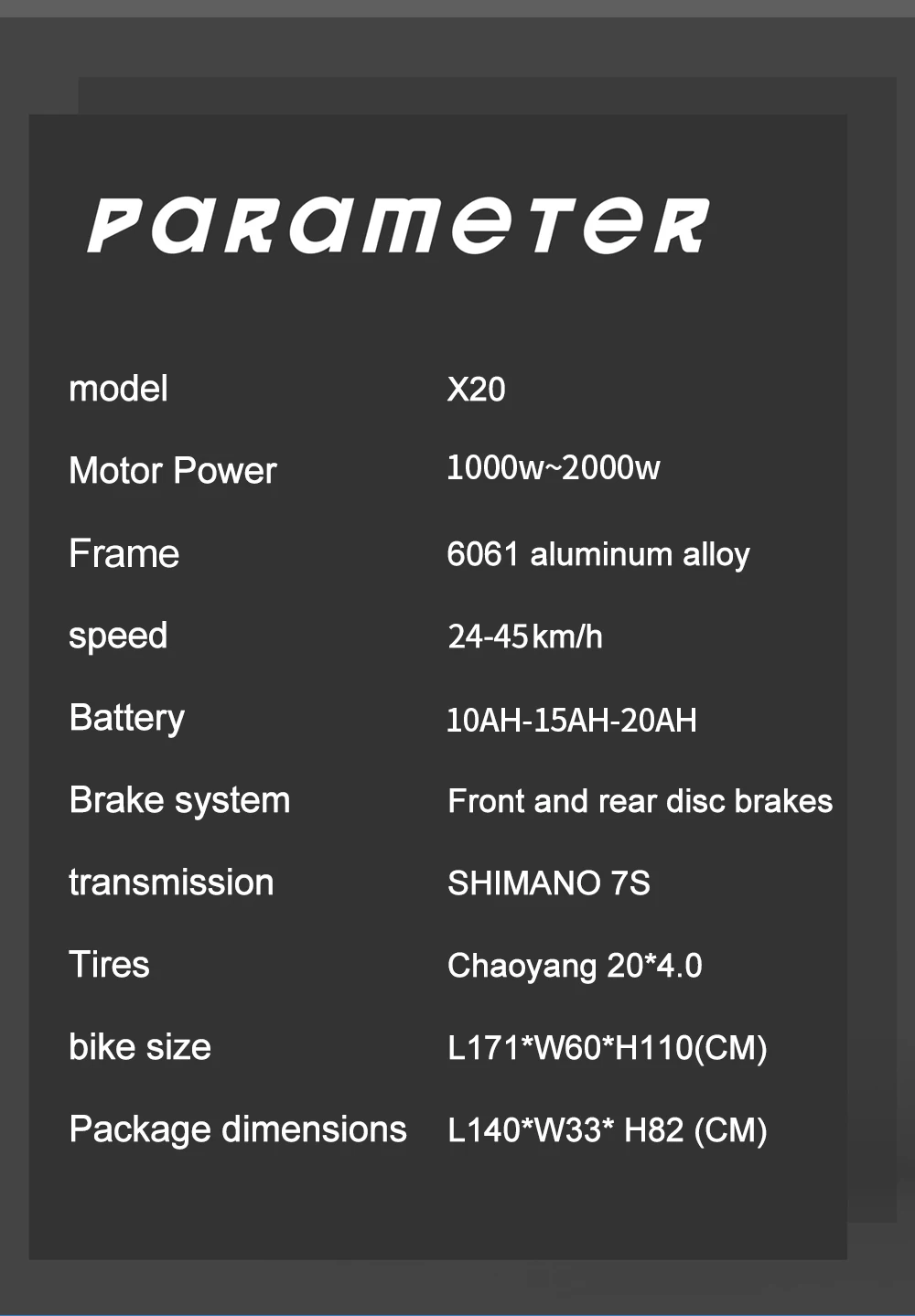

Basic parameters

Expanded size: length 1710*width 600*height 1100mm

Wheelbase: 1180mm

Actual weight: 34kg

Mode: pure electric, electric-assist, pedal

Frame material: aluminum

Front fork: hydraulic front fork

Braking system: Front and rear mechanical disc brakes

Transmission system: rear-drive

Tire size: 20*4.0

Display: LCD

Maximum speed ≤55km/h

Endurance 60km

Slope <35°

Load weight≤150kg

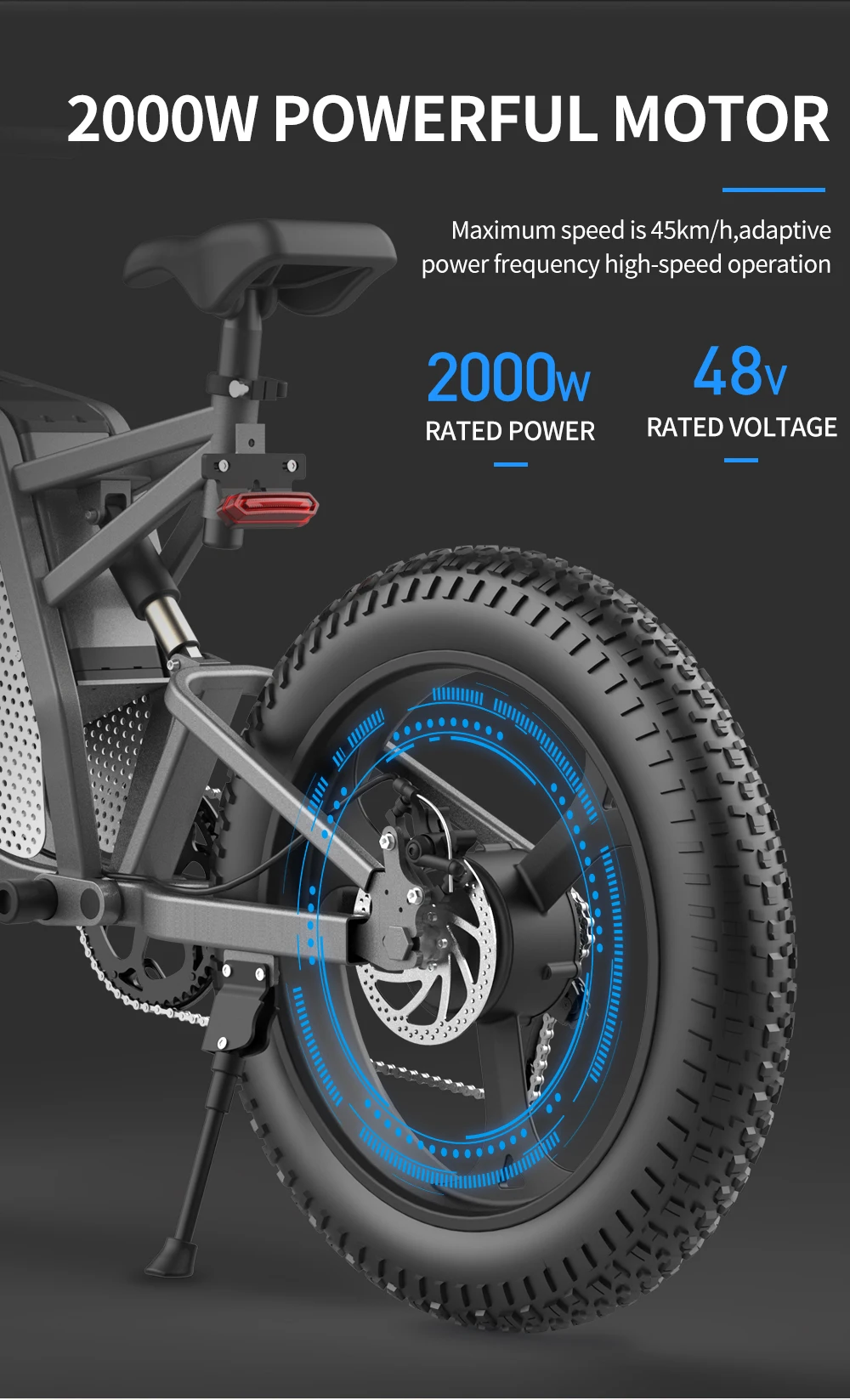

Motor parameters: 48v1000 and 48v500w

Motor type: DC brushless high-speed motor

Rated power 2000w

Rated voltage 48V

Main technical parameters of charging

Output power 3A

Charging time 4-6H

Lithium battery parameters

Battery type: 18650 lithium battery

Capacity 10AH,15AH,20AH

The main parameters of the controller

Undervoltage protection: 39V

Overcurrent protection: 28A

SPECIFICATIONS

speed: 55Km/h

round headlight: motorcycle headlights

Wheelbase: 1180mm

Wheel Size: 20“

Wattage: > 500w

Voltage: 48V

Undervoltage protection: 39V

Transmission system: Rear drive

Tire size: 20*4.0

Style: Multifunctional Type

Rated Passenger Capacity: One Seat

Range per Power: > 60 km

Power Supply: Lithium Battery

Overcurrent protection: 28A

Origin: CN(Origin)

Motor Power: 2000W and 1000W

Motor: Brushless

Mode: pure electric, electric assist, pedal

Max Speed: >50km/h

Front fork: hydraulic double shoulder front fork

Frame material: aluminum

Frame Material: Aluminum Alloy

Foldable: No

Expanded size: length 1710*width 600*height 1100mm

Endurance: 60km

Display: LCD

Certification: CE

Battery capacity: 10AH,15AH,20AH

Applicable people: adults, not children

Actual weight: 34KG
